Air Freight

Air Container Specifications

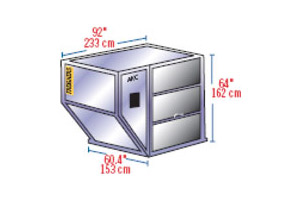

LD-1
LD-1
IATA ULD CodeAKC Contoured ContainerAlso known asAVC, AVD, AVK, AVJ
ForkableAVYClassificationLD-1
Rate ClassType 8Suitable forB747, B767, B777, MD-11
Internal Volume4.8 cu. m (169.5 cu.ft)Maximum Gross Weight1588 kg (3501 lb)

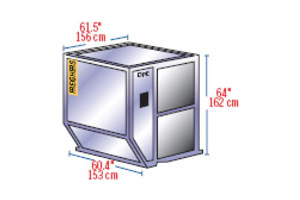

LD-2
LD-2
IATA ULD CodeDPE Contoured ContainerAlso known asAPA, DPA
ForkableDPNClassificationLD-2
Rate ClassType 8DSuitable forB767
Internal Volume3.4 cu. m (120 cu.ft)Maximum Gross Weight1225 kg (2700 lb)

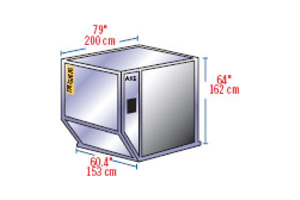

LD-3
LD-3
IATA ULD CodeAKE Contoured ContainerAlso known asAKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP, XKS, XKG
ForkableAKN, AVN, DKN, DVN, XKNClassificationLD-3
Rate ClassType 8Suitable forA300, A310, A330, B747, B767, B777, DC-10, MD-11, L1011
Internal Volume4.3 cu. m (152 cu.ft)Maximum Gross Weight1588 kg (3500 lb)

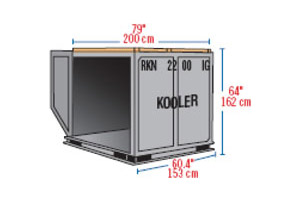

Insulated LD-3
Insulated LD-3
IATA ULD CodeRKNClassificationLD-3
Rate ClassType 8Suitable forA300, A310, A330, B747, B767, B777, DC-10, MD-11, L1011
Internal Volume3.0 cu. m (109 cu.ft)Maximum Gross Weight1588 kg (3500 lb)
Temperature Control Range-20C to +20CN/AN/A

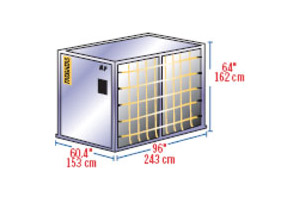

LD-4
LD-4
IATA ULD CodeALP Rectangular ContainerAlso known asALD, AWD, AWZ, DLP
ForkableALB, ALC, AWB, AWCClassificationLD-4
Rate ClassType 8Suitable forB767, B777
Internal Volume5.7 cu. m (201 cu.ft)Maximum Gross Weight2449 kg (5399 lb)

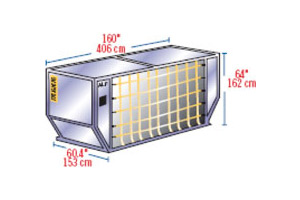

LD-6
LD-6
IATA ULD CodeALF Contoured ContainerAlso known asAWD, AWF
ForkableAWCClassificationLD-6
Rate ClassType 6WSuitable forA300, A310, A330, A340, B747, B777, DC-10, MD-11, L1011
Internal Volume8.9 cu. m (314 cu.ft)Maximum Gross Weight3175 kg (7000 lb)

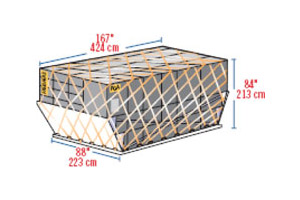

LD-7
LD-7
IATA ULD CodeXAW P1P Pallet with fixed angle wings and netClassificationLD-7
Rate ClassType 5Suitable forWide body: All aircraft
Maximum volume with overhang14.0 cu. m (494 cu.ft)Maximum Gross Weight5000 kg (11023 lb)

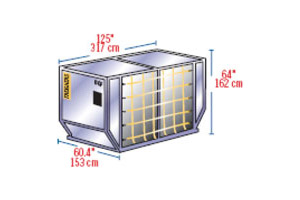

LD-8
LD-8
IATA ULD CodeDQFAlso known asALE, ALN, DLE, DLF, DQP, MQP
ClassificationLD-8Rate ClassType 6A
Suitable forB767Internal Volume6.85 cu. m (242 cu.ft)
Maximum Gross Weight2450 kg (5401 lb)N/AN/A

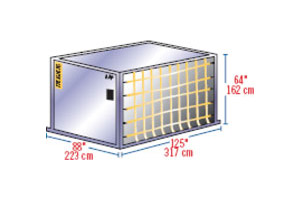

LD-9
LD-9
IATA ULD CodeAAP Enclosed Pallet on P1P baseAlso known asAA2, XAG, XAV
ClassificationLD-9Rate ClassType 5
Suitable forA300, A310, A330, A340, B747, B767, DC-10, MD-11, L1011Internal Volume9.1 cu. m (321 cu.ft)
Maximum Gross Weight4624 kg (10194 lb) lower deckMaximum Gross Weight6000 kg (13227 lb) main deck

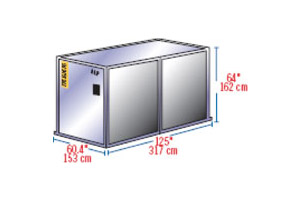

LD-11
LD-11
IATA ULD CodeALP Rectangular ContainerAlso known asALD, AW2, AWB, AWD, AWZ, DLP, DWB, MWB
Refrigerated versionRWB, RWD, RWZClassificationLD-11
Rate ClassType 6Suitable forA300, A310, A330, A340, B747, B777, DC-10, MD-11, L1011
Internal Volume7.2 cu. m (253 cu.ft)Maximum Gross Weight3176 kg (7002 lb)

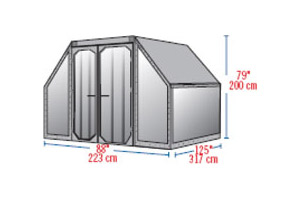

A-2
A-2
IATA ULD CodeDAAClassificationA-2
Suitable forB747, B747F, DC8, DC10, A300/FInternal Volume12.6 cu. m (444 cu.ft)
Maximum Gross Weight6033 kg (13300 lb)N/AN/A

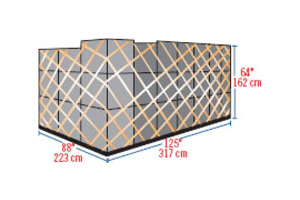

88'' Pallet
88'' Pallet
IATA ULD CodeP1PClassification88'' Pallet with net
Suitable forB747, B767, B777, DC-10Maximum Volume11.9 cu. m (420 cu.ft)
Maximum Gross Weight747/DC-10: 6033 kg (13300 lb)Maximum Gross Weight767: 5103 kg (11227 lb)
Maximum Gross Weight777/DC-10: 4626 kg (10501 lb)Can be loaded to 96'' (162 cm) and 118'' (300 cm) on freighters

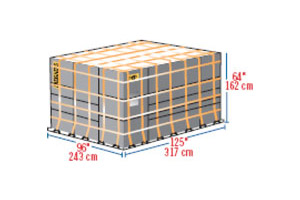

96'' Pallet
96'' Pallet
IATA ULD CodeP6P 10ft flat pallet with netAlso known asP6A, P6C, P6Q, PMA, PMC, PMP, PQP
ClassificationLD-9Rate ClassType 2BG
Suitable forA300, A310, A330, A340, B747, B767, B777, DC-10, MD-11, L1011Maximum Volume21.2 cu. m (747 cu.ft)
Maximum Gross Weight6804 kg (15000 lb)Can be loaded to 96'' (162 cm) and 118'' (300 cm) on freighters

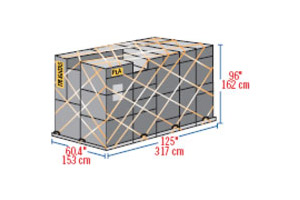

Half Pallet
Half Pallet
IATA ULD CodePLA half pallet with netAlso known asPLB, FLA, P9A, P9B, P9P, P9R, P9S
ClassificationHPRate ClassType 6
Suitable forLower deck: B747, B777Suitable forMain deck: B707F, B727F, B737F
Maximum Volume7.2 cu. m (254 cu.ft)Maximum Gross Weight3175 kg (6999 lb)

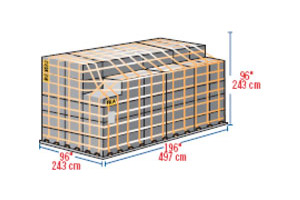

16 Ft Pallet
16 Ft Pallet
IATA ULD CodePRA 16ft flat pallet with netAlso known asPMA, P4A, P4M, PZA
ClassificationMDPRate ClassType 1P
Suitable forB747, B747CombiMaximum Volume26.8 cu. m (946 cu.ft)
Maximum Gross Weight11300 kg (24991 lb)N/AN/A

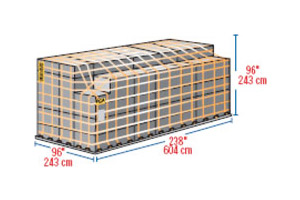

20 Ft Pallet
20 Ft Pallet
IATA ULD CodePGA 20ft flat pallet with netAlso known asPGA, PGE, PGF, PSA, PSG, P7A, P7E, P7F, P7G
ClassificationM-6Rate ClassType 1
Suitable forB747, B747CombiMaximum Volume33.2 cu. m (1174 cu.ft)
Maximum Gross Weight11340 kg (25000 lb)N/AN/A

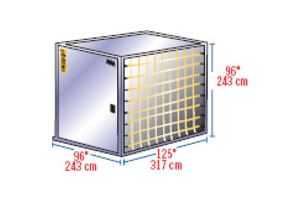

AQ6
AQ6
IATA ULD CodeAMA Rectangular Container on P6P BaseAlso known asAMF, AMG, AMK, AMP, AQA, AQD, AQ6
ClassificationM-1Rate ClassType 2
Suitable forB747, B747CombiInternal Volume17.5 cu. m (618 cu.ft)
Maximum Gross Weight6804 kg (15000 lb)N/AN/A

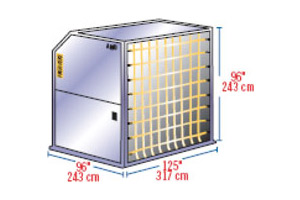

AQ7
AQ7
IATA ULD CodeAMD Contoured Container on P6P BaseAlso known asAQA, AQ7
ClassificationM1HRate ClassType 2H
Suitable forB747, B747CombiInternal Volume19.9 cu. m (702 cu.ft)
Maximum Gross Weight6800 kg (14991 lb)N/AN/A

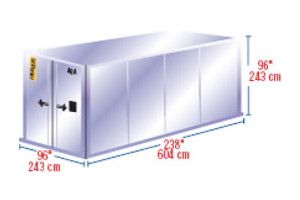

M-6
M-6
IATA ULD CodeAGA 20ft Box ContainerAlso known asASE
ClassificationM-6Rate ClassType 1
Suitable forB747, B747CombiInternal Volume33.0 cu. m (1165 cu.ft)
Maximum Gross Weight11340 kg (25000 lb)N/AN/A

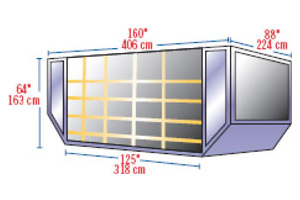

LD-26
LD-26
IATA ULD CodeAAFClassificationLD-26
Suitable forB747, B777, DC-10Maximum Gross Weight747/DC-10: 6033 kg (13300 lb)
Maximum Gross Weight777/DC-10: 4626 kg (10501 lb)N/AN/A

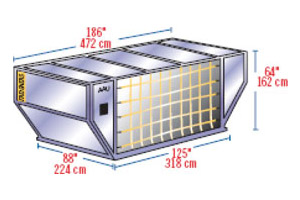

LD-29
LD-29
IATA ULD Code AAU Contoured Container on P1P Base Classification LD-29
Rate Class Type 5 Suitable for B747
Internal Volume 14.2 cu. m (501 cu.ft) Maximum Gross Weight 6033 kg (13300 lb)
